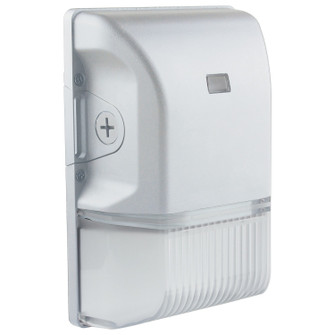

LED Wall Pack by Nuvo Lighting in White finish Introducing SATCO NUVO's new CCT and Wattage selectable wall packs with integrated by-passable photocells and emergency battery backup modes. These cULus certified wall packs are offered in both a traditional and semi-cutoff style in two wattage configurations, 29W/40W/60W and 80W/100W/120W. They are CCT selectable 3000K, 4000K and 5000K and both feature battery back up modes consisting of 16 watts of power at 1120 lumens with a 90 minute run time. The traditional style is offered in both 120V-277V and 120V-347V and the semi-cutoff version is 120V-277V. Both styles are 4KV, rated for 50,000 hours, are DLC premium, and carry a 5 year warranty. Notes: UV stabilized powder coated finish {ADDITIONAL FINISH INFORMATION: White}
Characteristics and Features
IMAGE INFO:
ACTUAL
STANDARD STYLE:
TRANSITIONAL
BEAM SPREAD:
100.00
CRI:
80
LIGHT OUTPUT:
2600.00LM
LIGHT SOURCE:
LED
MATERIAL:
DIE-CAST ALUMINUM
RATED AVERAGE LIFE:
50000H
UL LISTED:
CULUS
UL RATING:
WET
Dimensions & Measurements
HEIGHT:
8.70
HEIGHT RANGE:
0-15''
WIDTH:
8.70
WIDTH RANGE:
0-15''
EXTENSION:
3.40
Electrical Specifications
NUMBER OF BULBS:
1
BULB BASE:
INTEGRATED
BULB TYPE:
INTEGRATED LED
VOLTAGE:
120.00
MAX WATTAGE:
20.00
Included Components
Warranty and Product Information
MANUFACTURER WARRANTY:
5-YEARS
INSTALLATION SHEET:
CLICK HERE
SPEC SHEET:
CLICK HERE
Product Availability
ON DISPLAY IN SHOWROOM:
No
IN STOCK IN SHOWROOM:
No
QUANTITY AVAILABLE AT MANUFACTURER:
90
Shipping Information
SHIP WEIGHT:
2.64LB
